Large Radius One Piece Chute Blades
|
| Engineered for Performance |

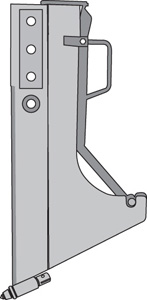

FOR CASE MINI & MAXI SNEAKERS, BURKEEN B30*, VERMEER LM25, LM35/40/42
 |
 |
Shown as Optional
"Combo" Blade
Custom sizes available
upon request. Chute
widths up to 1" I.D. |
|
| For Case Mini & Maxi Sneakers, Burkeen 30*, Vermeer LM25, LM35/40/42 |
| Model No. |
"Combo" Model No. |
Inside Chute Width |
Depth Of Ground Cover |
Available Shute Radius |
Gate Pin No. |
| 3" |
5" |
8" |
| C50-912-3R |
CC-50-912-3R |
1/2" |
9" & 12" |
YES |
N/A |
N/A |
GP-250 |
| C50-1215-3R |
CC-50-1215-3R |
1/2" |
12" & 15" |
YES |
N/A |
N/A |
GP-250 |
| C501518-3R |
CC-50-1518-3R |
1/2" |
15" & 18" |
YES |
N/A |
N/A |
GP-250 |
| C-75-912-** |
CC-75-912-** |
3/4" |
9" & 12" |
YES |
YES |
N/A |
GP-250 |
| C-75-1215-** |
CC-75-1215-** |
3/4" |
12" & 15" |
YES |
YES |
YES |
GP-250 |
| C-75-1518-** |
CC-75-1518-** |
3/4" |
15" & 18" |
YES |
YES |
YES |
GP-250 |
| C-75-1824-** |
CC-75-1824-** |
3/4" |
18" & 24 " |
YES |
YES |
YES |
GP-250 |
*The Burkeen plow design does not allow use of the adjustable plowing depth feature of these blades. You can only use the top set of mounting holes.
**Add suffix -3R, -5R, -8R to Model No. for desired bend radius. |
|

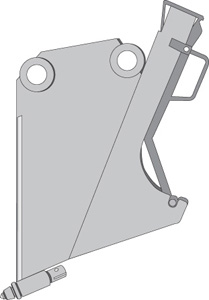

For Ditch Witch Plows 255SX, 350SX, 400SX, and 410SX
|
Shown as optional
"Combo" Blade
Custom sizes available
upon request. Chute
widths up to 1" I.D. |
 |
|
|
| Standard Model No. |
"Combo" Model No. |
Chute Radius |
Cover Depth |
Chute I.D. |
Gate Pin No. |
| CDW-12E-3R |
CCDW-12E-3R |
3' |
12" |
3/4" |
GP-250 |
| CDW-18E-3R |
CCDW-18E-3R |
3' |
18" |
3/4" |
GP-250 |
| CDW-24E-3R |
CCDW-24E-3R |
3' |
24" |
3/4" |
GP-250 |
| CDW-12E-5R |
CCDW-12E-5R |
5' |
12" |
3/4" |
GP-250 |
| CDW-18E-5R |
CCDW-18E-5R |
5' |
18" |
3/4" |
GP-250 |
| CDW-24E-5R |
CCDW-24E-5R |
5' |
24" |
3/4" |
GP-250 |
|
Note: When ordering a chute blade allow 1/16" additional width for cable clearance.
NOTICE
CHUTE BLADES ARE CUSTOM MANUFACTURED AND ARE
NON-RETURNABLE. THEREFORE, PLEASE BE CERTAIN OF
REQUIREMENTS PRIOR TO ORDERING.
|
|
