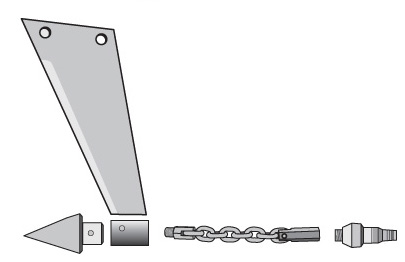

Exploded View

High Alloy Steel Blades
Blade Point	Reamer Bushing	Lost Motion Assembly	Grip, 2 Step

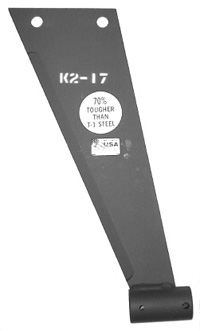

Kaercher Style Plowing Blades for Kaercher and Pipe Piper Plows

Chrome-Moly Steel Bushing

Pipe Piper and Kaercher Product Listing

Pipe piper and kaercher product listing
Part	Model No.	Description	Fits
	T1-12 T1-13	Plowing Blades Small Blade - 12" O.A.L. Small Blade - 13" O.A.L.	Machine Model 100
	T2-10 T2-12 T2-14 T2-15 T2-17	Large Blade - 10" O.A.L. - Large Bushing Large Blade - 12" O.A.L. - Large Bushing Large Blade - 14" O.A.L. - Large Bushing Large Blade - 15" O.A.L. - Large Bushing Large Blade - 17" O.A.L. - Large Bushing	Kaercher 256 140/175 180/230
	T2-11A T2-13A T2-14A T2-16A T2-15RC	Large Blade - 11" O.A.L. - Small Bushing Large Blade - 13" O.A.L. - Small Bushing Large Blade - 14" O.A.L. - Small Bushing Large Blade - 16" O.A.L. - Small Bushing Large Blade - 15" O.A.L. - Root Cutter	Kaercher 256 140/175 180/230
	TP-100 TP-100P	Blade Points Small Point - 1.5" O.D. Small Point Pin (1 Pc)	Small Bushing Small Bushing
	TP-200 TP-250 TP-200P	Large Point - 2.25" O.D. Large Point - 2.50" O.D. Large Point Pin (1 Pc)	Large Bushing Large Bushing Large Bushing
	TG-2X TG-3X TG-4X	Pipe Grips Grip, 2 Step - 3/4" and 1" Pipe Grip, 3 Step - 3/4" thru 1 1/4" Pipe Grip, 4 Step - 3/4" thru 1 1/2" Pipe	All All All
	TB-100 TB-200	Blade Bushings Bushing, Small Bushing, Large	All Blades Large Blades
	TA-1 TA-1M TA-1F TA-1C TA-1PS	Adapters 5/8" Thread Lost Motion Assembly Set Adapter, Male Adapter, Female Adapter, Chain (Hi-Test) Adapter Pin Set (2 Pcs)	All Blades

Note: All manufacturer's names, symbols, and descriptions are used for reference purposes only, and none of the
products listed are the products of these manufacturers.
