SD Blade Bullet System

Design Features



BorePro's new SD Blade Bullet System is the strongest, most durable and versatile in the industry. All major components, such as the bullet Receiver/Bushing and Bullets, are manufactured from heat-treated chrome-moly steel with an average tensile strength exceeding 150,000 psi for maximum strength and wear-resistance.

In addition to strength and durability, the SD System offers a large selection of bullet sizes, wear and design options to meet most soil and plowing conditions. Available bullet diameters are 2", 2.5", 3", 3.5" and 4". The Long-Life Bullet Series has a tungsten carbide tip and hard- facing for exceptional durability. All bullets have a 1" diameter shank.

TRACTION OPTION
One of the more versatile options of the SD Bullet System is the "Traction Bullet" that is engineered to "pull down" the plowing blade and vibratory plow for increased traction and plowing depth in hard ground. In severe situations, the "XT Traction Bullet" is recommended for additional traction and pull depth.

STANDARD EQUIPMENT

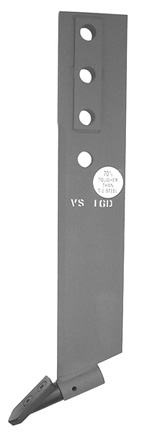

The SD Blade Bullet System, with a C-2000 bullet, is standard equipment on the following heavy duty series of plow blades with a pull-depth rating of 18 inches or more: VS-D, VS-E, VS-F, VMT-D, DW30-D, DW30-E, and DW30-F.

The SD System, with a C-2000 bullet, is available as an "exchange" option on all other 1/2" and thicker plow blades for an additional charge. Ask for option SD-1000X.



SD System Components
Model No. Description
B-1750 Bullet Receiver/Bushing
B-1750PS Pin Set for B-1750 (2 Pcs)
C-2000 2.0" Diameter Standard Bullet
C-2500 2.5" Diameter Standard Bullet
C-2500X 2.5" Diameter Standard Bullet (Exchange*)
C-3000 3.0" Diameter Standard Bullet
C-3000X 3.0" Diameter Standard Bullet (Exchange*)
C-3500 3.5" Diameter Standard Bullet
C-3500X 3.5" Diameter Standard Bullet (Exchange*)
C-4000 4.0" Diameter Standard Bullet
C-4X000 4.0" Diameter Standard Bullet (Exchange*)
C-2000HF 2.0" Diameter Long-Life Bullet
C-2000HFX 2.0" Diameter Long-Life Bullet (Exchange*)
C-2500HF 2.5" Diameter Long-Life Bullet
C-2500HFX 2.5" Diameter Long-Life Bullet (Exchange*)
C-3000HF 3.0" Diameter Long-Life Bullet
C-3000HFX 3.0" Diameter Long-Life Bullet (Exchange*)
C-3500HF 3.5" Diameter Long-Life Bullet
C-3500HFX 3.5" Diameter Long-Life Bullet (Exchange*)
C-4000HF 4.0" Diameter Long-Life Bullet
C-4000HFX 4.0" Diameter Long-Life Bullet (Exchange*)
T-2500 Standard Traction Bullet
T-2500X Standard Traction Bullet (Exchange*)
XT-2500 XT Traction Bullet Assembly
XT-2500X XT Traction Bullet (Exchange*)
XT-1500 XT Bullet Body
XT-2000 XT Bullet Bolt-On Point
XTCS-125 Flat Head Cap Screw, 1/2 X 1.25
XTCS-100 Flat Head Cap Screw, 1/2 X 1.00
*Exchange price when installed on a "new" blade.







Standard Bullet







Long-Life Bullet







Traction Bullet







XT Traction Bullet















Receiver/Bushing
