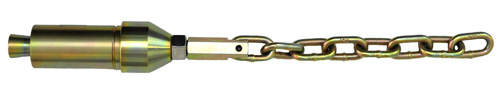

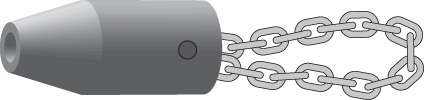

Designed for the “Loop” gripping method of pulling poly pipe. Three bullet diameters are available to give the contractor flexibility in pulling 1/2 inch thru 2 inch poly pipe. The poly chain grip is also ideal for pulling multiple poly pipes simultaneously.





Poly Chain Grip Assembly		REplacement Parts
Model No.	O.D.	Pin Set	Chain
PCG-150	1.5"	SP-75	CH-2050
PCG-200	2"	SP-100	CH-2050
PCG-250	2.5"	SP-125	CH-2050
PCG-300	3"	SP-200	CH-3000

Use the “Lost Motion Assembly” (LMA-200) to attach the chain grip to any BorePro plowing blade.

BorePro's new Wedge-Grip Pipe and Duct Grip is designed for pipe pulling (including vibratory plowing) and boring pull-backs. Its extreme ease of use, broad gripping range and rugged design make it an ideal grip for underground contractors. Coupling and uncoupling to pipe and duct can be done in just a few seconds without tools.

The Wedge-Grip's sleeve has a different bore size at each end that allows it to grip a broad range of both PVC and PE pipe. It will grip 1" irrigation pipe SDR-11.5 and SDR-15, 1" PVC pressure pipe SDR-21 and SCH-40, 1" yellow gas pipe SDR-11, 1" O.D. controlled innerduct SDR-11, 13.5, 15.5 and 40, and 1" I.D. controlled innerduct SDR-9 and 11.5.

The grip's cone-shaped end cover reduces snagging, provides a smooth bore hole and, most importantly, keeps dirt out of the pipe. Additional protection from dirt is provided by a secondary shield -- the sleeve's 1/2" thick web.

Once you have evaluated the Wedge-Grip's many features, we believe you will agree it offer more value and flexibility than any other wedge-type pipe grip on the market today.

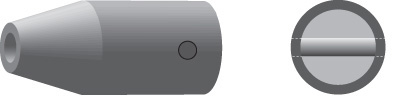

Four bullet diameters are available to give the contractor flexibility in pulling pipe and cable. Trailing bullets are also ideal for pulling multiple pipes and cables simultaneously.

Pin Set	Rear View

Use a “Lost Motion Assembly” to attach trailing bullets to any BorePro plowing blade.
