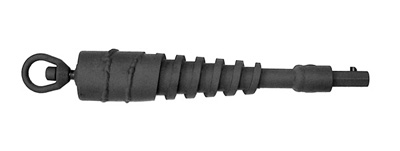

Used to enlarge holes in compressible soil, these high quality back-reamers are self-feeding and produce clean, compacted holes.
ROTO-BORE® Reamers are machined from solid chrome-moly steel bar stock on state-of-the-art CNC lathes and machining centers. All reamers are heat-treated to an average tensile strength of 153,000 psi for optimum strength and toughness.
Push Button Lock
Model No.
Bit Dia.
Hex Size
Barrel End
R-01200
2.00"
13/16"
Swivel
R-01250
2.50"
13/16"
Swivel
R-01300
3.00"
13/16"
Swivel
R-01350
3.50"
13/16"
Swivel
R-01400
4.00"
13/16"
Swivel
R-01450
4.50"
13/16"
Swivel
R-02200
2.00"
1"
Swivel
R-02250
2.50"
1"
Swivel
R-02300
3.00"
1"
Swivel
R-02350
3.50"
1"
Swivel
R-02400
4.00"
1"
Swivel
R-02450
4.50"
1"
Swivel
Note: For maximum performance and tool life, back-reaming should be done incrementally, one-inch at a time, i.e. 2", 3", etc.
Ditch Witch Connector
Case/Astec Connector
Ditch Witch
Std. Compaction Reamers
Model No.
Bit Dia.
Hex Size
Barrel End
R-03200
2.00"
7/8"
Swivel
R-03250
2.50"
7/8"
Swivel
R-03300
3.00"
7/8"
Swivel
R-03350
3.50"
7/8"
Swivel
R-03400
4.00"
7/8"
Swivel
R-03450
4.50"
7/8"
Swivel
Case/Astec (Clip-Type)
Std. Compaction Reamers
Model No.
Bit Dia.
Hex Size
Barrel End
R-04200
2.00"
7/8"
Swivel
R-04250
2.50"
7/8"
Swivel
R-04300
3.00"
7/8"
Swivel
R-04350
3.50"
7/8"
Swivel
R-04400
4.00"
7/8"
Swivel
R-04450
4.50"
7/8"
Swivel
Swivel Repair Kits
The following three Swivel Repair Kits are available for BorePro compaction backreamers. Each Kit contains a forged steel eye, mounting bolt and special nut. Welding is required.
Swivel Repair Kits
Model No.
Fits
SPK-100
2.0" & 2.5" Backreamers
SPK-300
3.0" & 3.5" Backreamers
SPK-400
4.0" & 4.5" Backreamers
Note: These swivels do not rotate under load. They will only release torsional load when pulling load is relieved.
