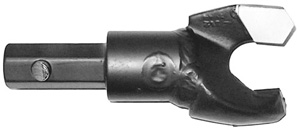

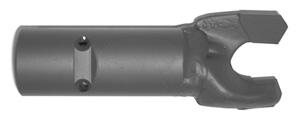

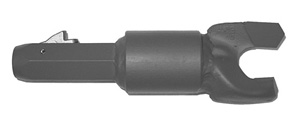

Heavy Duty Rock Heads* with Carbide Cutters |
| Design Features |
These Heavy Duty Rock Heads are designed for drilling holes in hard clays, shale, hardpan, sandstone and root impregnated areas. The tool bodies are manufactured from chrome-moly tool steel, and the carbide cutting blades are made in the USA.
NEW 3" SIZE
|
| |
 |
|
| |
BorePro Hex |
|
| Tool Steel Bodies |
 |
Carbide Cutters |
| |
Ditch Witch Hex |
|
|
 |
|
| |
CASE/Astec Hex |
|
| HEAVY DUTY ROCK HEADS |
| MODEL NO. |
BIT DIA. |
HEX SIZE |
FITS |
MODEL NO. |
BIT DIA. |
HEX SIZE |
FITS |
| RH-1175 |
1.75" |
13/16" |
BorePro |
RH-3175 |
1.75" |
7/8" |
Ditch Witch |
| RH-1188 |
1.88" |
13/16" |
BorePro |
RH-3188 |
1.88" |
7/8" |
Ditch Witch |
| RH-1200 |
2.00" |
13/16" |
BorePro |
RH-3200 |
2.00" |
7/8" |
Ditch Witch |
| RH-1225 |
2.25" |
13/16" |
BorePro |
RH-3225 |
2.25" |
7/8" |
Ditch Witch |
| RH-1250 |
2.50" |
13/16" |
BorePro |
RH-3250 |
2.50" |
7/8" |
Ditch Witch |
| RH-1300 |
3.00" |
13/16" |
Triple D |
RH-3300 |
3.00" |
7/8" |
Ditch Witch |
| RH-2175 |
1.75" |
1" |
BorePro |
RH-4175 |
1.75" |
7/8" |
CASE/Astec |
| RH-2188 |
1.88" |
1" |
BorePro |
RH-4188 |
1.88" |
7/8" |
CASE/Astec |
| RH-2200 |
2.00" |
1" |
BorePro |
RH-4200 |
2.00" |
7/8" |
CASE/Astec |
| RH-2225 |
2.25" |
1" |
BorePro |
RH-4225 |
2.25" |
7/8" |
CASE/Astec |
| RH-2250 |
2.50" |
1" |
BorePro |
RH-4250 |
2.50" |
7/8" |
CASE/Astec |
| RH-2300 |
3.00" |
1" |
BorePro |
RH-4300 |
3.00" |
7/8" |
CASE/Astec |
* Not for solid rock. |

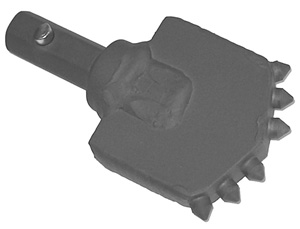

Spade Rock Heads*
|
BorePro's Spade Rock Heads are manufactured from the finest tool steel and carbide available to create one aggressive, tough, long lasting and inexpensive drill bit. Conical carbide cutters are strategically positioned to aggressively drill through those nasty soils. The heat-treated, abrasive resistant steel body is 3/4" thick and is hard-faced on all major wear edges for long life.
Best used with a Lead Auger to remove millings.
|
| Tool Steel Shank |
 |
AR Steel Body |
Tool Steel
Locking Button |
|
| Hard-Facing |
Carbide Cutters |
|
| SPADE ROCK HEADS |
| MODEL NO. |
BIT DIA. |
HEX SIZE |
FITS |
MODEL NO. |
BIT DIA. |
HEX SIZE |
FITS |
| SRH-01300 |
3.0" |
13/16" |
BorePro |
SRH-03300 |
3.0" |
7/8" |
Ditch Witch |
| SRH-01350 |
3.5" |
13/16" |
BorePro |
SRH-03350 |
3.5" |
7/8" |
Ditch Witch |
| SRH-01400 |
4.0" |
13/16" |
BorePro |
SRH-03400 |
4.0" |
7/8" |
Ditch Witch |
| SRH-01450 |
4.5" |
13/16" |
BorePro |
SRH-03450 |
4.5" |
7/8" |
Ditch Witch |
| SRH-02300 |
3.0" |
1" |
BorePro |
SRH-04300 |
3.0" |
7/8" |
CASE/Astec |
| SRH-02350 |
3.5" |
1" |
BorePro |
SRH-04350 |
3.5" |
7/8" |
CASE/Astec |
| SRH-02400 |
4.0" |
1" |
BorePro |
SRH-04400 |
4.0" |
7/8" |
CASE/Astec |
| SRH-02450 |
4.5" |
1" |
BorePro |
SRH-04450 |
4.5" |
7/8" |
CASE/Astec |
*Not for solid rock
|
Lead Augers for Use with Rock Heads
|
Lead augers are used behind rock heads to capture and remove millings when they are withdrawn from the bore hole.
Solid Rod |
| Lead Augers* |
| Model No. |
Diameter |
Length |
Drive Size |
| A-011875-4 |
1 7/8" |
4' |
13/16" hex |
| A-012375-4 |
2 3/8" |
4' |
13/16" hex |
| A-012875-4 |
2 7/8" |
4' |
13/16" hex |
| A-013250-4 |
3 1/4 " |
4' |
13/16" hex |
| A-013500-4 |
3 1/2 " |
4' |
13/16" hex |
| A-014250-4 |
4 1/4 " |
4' |
13/16" hex |
| A-021875-4 |
1 7/8" |
4' |
1" hex |
| A-022375-4 |
2 3/8" |
4' |
1" hex |
| A-022875-4 |
2 7/8" |
4' |
1" hex |
| A-023250-4 |
3 1/4 " |
4' |
1" hex |
| A-023500-4 |
3 1/2 " |
4' |
1" hex |
| A-024250-4 |
4 1/4 " |
4' |
1" hex |
| A-031875-4 |
1 7/8" |
4' |
7/8" DW |
| A-032375-4 |
2 3/8" |
4' |
7/8" DW |
| A-032875-4 |
2 7/8" |
4' |
7/8" DW |
| A-033250-4 |
3 1/4 " |
4' |
7/8" DW |
| A-033500-4 |
3 1/2 " |
4' |
7/8" DW |
| A-034250-4 |
4 1/4 " |
4' |
7/8" DW |
| A-041875-4 |
1 7/8" |
4' |
7/8" CASE |
| A-042375-4 |
2 3/8" |
4' |
7/8" CASE |
| A-042875-4 |
2 7/8" |
4' |
7/8" CASE |
| A-043250-4 |
3 1/4 " |
4' |
7/8" CASE |
| A-043500-4 |
3 1/2 " |
4' |
7/8" CASE |
| A-044250-4 |
4 1/4 " |
4' |
7/8" CASE |
| *5 foot and 10 foot lengths available upon request. |
|
